1 7/8" Dia, Carbide Tipped, Multipurpose Slotting Cutter, 2 Flutes
| Tool ID | QUADRISET |
|---|---|
| Brand | Dimar |
| Trade | Industrial |
| Number of Cutters | 2 |
| Diameter (D) | 1 7/8" |
| Shank (d) | 1/2" |
| Technology | Carbide Tipped |
| Machine | Table Router |
| Material | Soft Wood, Hard Wood |
This ultimate Quadriset router bit is recommended to cut grooves and dados. Achieving continuous width from 5.7 to 18mm in increments of 0.1mm. Tongue and Groove along wood lengths. For purposes of aligning or cladding. With the right setup, you may get tongue and groove as well. Also, useful for making doors, windows, pictures, etc.
- Carbide-tipped for maximum performance
- Cuts most hardwood or softwood
- Can be used on most table-mounted portable routers

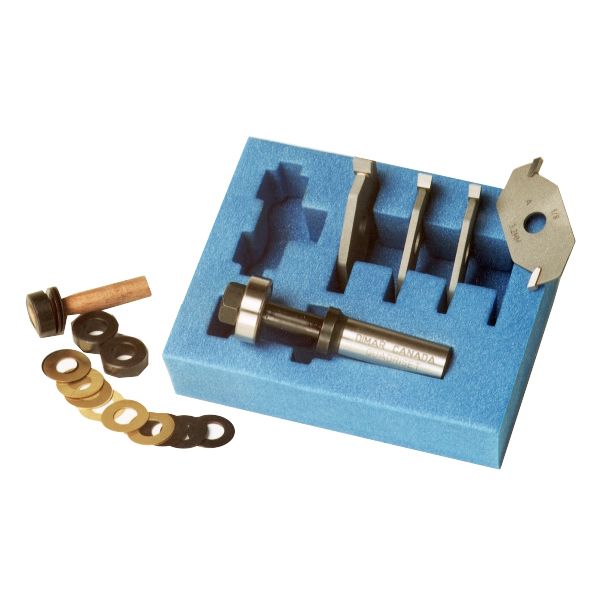

This complete set consists of:
Four single 2 wing slotting cutters marked:
A - Width 1/8” (3.2mm) (Tool No. 108R2-3)
B - Width 5/32” (4mm) (Tool No. 108R2-4)
C - Width 3/16” (4.8mm) (Tool No. 108R2-5)
D - Width 1/4” (6.35mm) (Tool No. 108R2-6)
One arbor with nut (Tool No. 1900048)
1/2” Shank x Thread and nut 5/16” NF
L1 = 1 3/8”
OAL = 3”
One ball bearing (Tool No. BB-22)
O.D. 7/8”(22mm)xI.D. 5/16”(8mm)x 9/32” thick
Spacers, washers, and shims:
Spacers 6.0mm, 3 pcs, (Tool No. 1920160)
Washers 1.0mm, 5 pcs, (Tool No. 1920110)
Shims 0.5mm, 4pcs, (Tool No. 1920130)
Shims 0.1mm, 10 pcs, (Tool No. 1921000)
