PCD804.2025.75
Industrial

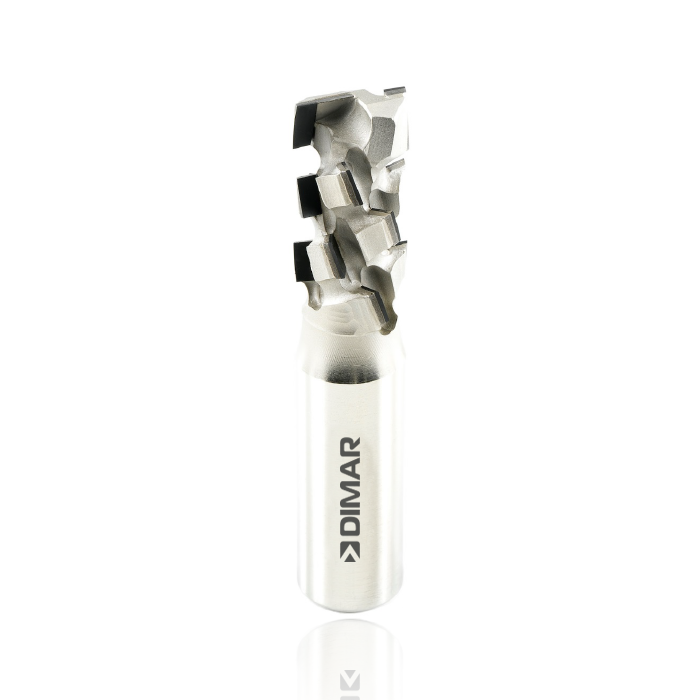

20mm Dia, PCD, Spiral Router Cutter, Z8+1, RH, 20mm Shank, 85mm Length
MSRP: CA$ 455.81
In stock
SKU
PCD804.2025.75
CA$ 455.81
Technical Specifications
| Tool ID | PCD804.2025.75 |
|---|---|
| Brand | Dimar |
| Trade | Industrial |
| Diameter (D) | 20mm |
| Shank (d) | 20mm |
| Cutting Length (B) | 25mm |
| Overall Length (L) | 85mm |
| Axial° | 20° |
| Rotation | Right Hand (RH) |
| Number of Cutters | 8+1 |
| Teeth Thickness (H) | 4.5mm |
| Technology | PCD (Diamond) |
| Machine | CNC Machine |
| Material | MDF, Laminate, Plywood, Chipboards |
| Maximum RPM | 24,000 |
Description
Diamond polycrystalline router bits for pantograph, ideals for panels made on raw and coated chipboard, MDF, plywood, etc.
Positive/Negative axial construction, to get an optimal finishing on both sides of the panel.
Capable of drilling thanks to the HM (Hard Metal) tooth. (On request, with PCD to drill) - Axial construction.
It can be resharpened 10/12 times.
Excellent noiselessness thanks to the high evacuation of the chip.
Right Hand Rotation.
