N8-A18
Industrial

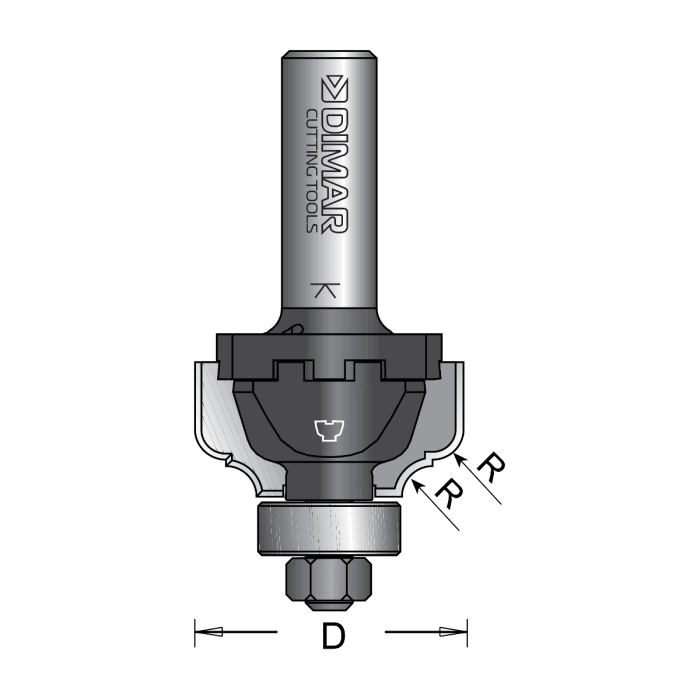

1 3/8" Dia, Carbide Inserts, Ogee Fillet, Type A, 2 Flutes, 1/2" Shank, 3" Length
MSRP: CA$ 105.77
In stock
SKU
N8-A18
CA$ 105.77
Technical Specifications
| Tool ID | N8-A18 |
|---|---|
| Brand | Dimar |
| Trade | Industrial |
| Diameter (D) | 1 3/8" |
| Number of Cutters | 2 |
| Shank (d) | 1/2" |
| Radius (R) | 5/32" |
| Overall Length (L) | 3" |
| Technology | Carbide Inserts |
| Machine | Hand Router, CNC Machine |
| Material | Soft Wood, Hard Wood |
Description
Dimar's carbide inserts Ogee Fillet bits consists of two arcs that curve in opposite senses so that the ends are parallel. In architecture, the name is also used for a moulding with an ogee-shaped profile, consisting (going from low to high) of a concave arc flowing into a convex arc, with vertical ends. Some slight variations of the standard ogee are also known as “wavy bits”. A “stepped ogee” is basically an ogee bit with a step-like design at the intersection of the two curves, to give it a detailed design.
- Two flutes are ideal when fine finishing is a priority.
- Works on most CNC, Hand-Held, and table routers.
- Cuts most softwood and hardwood.
