N4-B55
Industrial
1 1/4" Dia, Carbide Inserts, Ogee Plunge Inserts, Type B, 2 Flutes, 1/4" Shank, 2 1/4" Length
MSRP: CA$ 89.06
In stock
SKU
N4-B55
CA$ 89.06

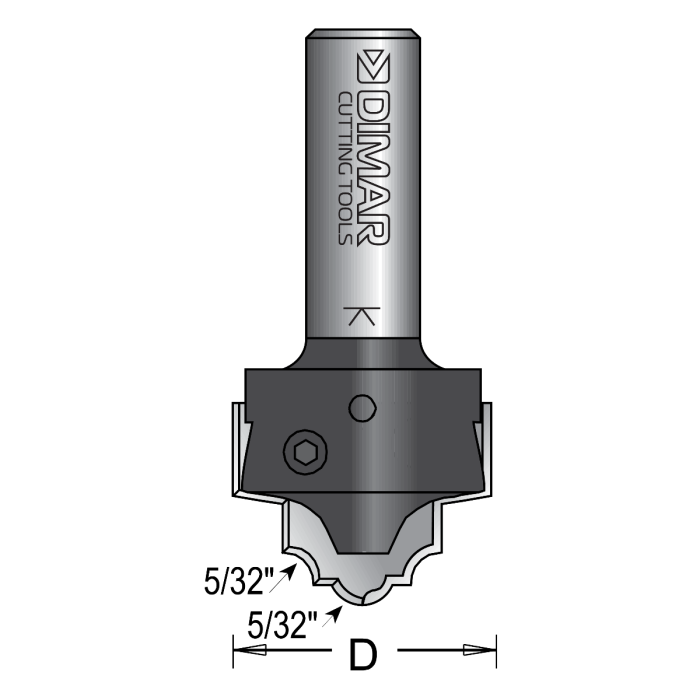

Technical Specifications
| Tool ID | N4-B55 |
|---|---|
| Brand | Dimar |
| Trade | Industrial |
| Diameter (D) | 1 1/4" |
| Number of Cutters | 2 |
| Shank (d) | 1/4" |
| Radius (R) | 5/32" |
| R1 | 5/32" |
| Overall Length (L) | 2 1/4" |
| Technology | Carbide Inserts |
| Machine | Hand Router, Table Router , CNC Machine |
| Material | Soft Wood, Hard Wood, Composite Material, Plywood |
Description
Dimar's Multi Profile Router is the perfect solution for creating many complex profiles. Multi Profile Router gives the widest range of profiling options in a single router bit with replaceable and reversible carbide tips. It is the entire workshop of options in a single router bit. Dimar's carbide-tipped Ogee bit consists of two arcs that curve in opposite sides, resulting in parallel ends. In architecture, the name is also used for molding with an ogee-shaped profile, consisting (going from low to high) of a concave arc flowing into a convex arc, with vertical ends. Some slight variations of the standard ogee are also known as “wavy bits”.
- Perfect for vertical and gradual plunging.
- Cuts most composite materials, plywood, hardwoods, and softwoods.
- Use on CNC, Hand-held routers, and table-mounted portable routers.
