2R8-45
Industrial

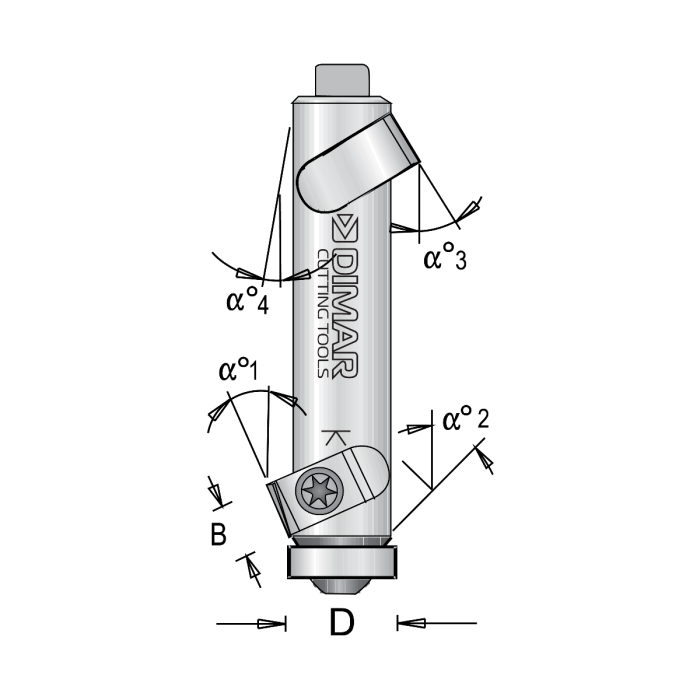

14mm Dia, Carbide Inserts, Multi-Bevel Bit, 1 Flute, 1/2" Shank, 2 7/8" Length
MSRP: CA$ 137.70
In stock
SKU
2R8-45
CA$ 137.70
Technical Specifications
| Tool ID | 2R8-45 |
|---|---|
| Brand | Dimar |
| Trade | Industrial |
| Diameter (D) | 14mm |
| Shank (d) | 1/2" |
| Degree (a°) | 15°, 23°, 30°, and 45° |
| Overall Length (L) | 2 7/8" |
| Technology | Carbide Inserts |
| Machine | Hand Router, Table Router , CNC Machine |
| Material | Soft Wood, Hard Wood |
Description
Dimar's Carbide Insert Multi-Bevel Trimming Bits are perfect to produce an angled cut on the square edge of a piece of stock. Bevel bits are versatile, in that one bit can create a number of different-size chamfers based on the depth of the cut. As with the beading bit, some Bevel bits have a bearing-tip that rides along the edge of the stock.
Bevel bits may produce a sunken type effect with a flat bottom and different angels. Although not a plunge type bits, they are used for decorative applications.
- Four different angles, 15°, 23°, 30°, & 45° can be achieved.
- One Flutes are ideal when working with high feed rate.
- Cuts most softwood and hardwood.
- Works on CNC, Hand-Held, Tabel router machines.
