20-120-NF-THIN-4
Industrial
20" Dia, Carbide Tipped, Non Ferrous Saw Blade, 4.2mm Kerf, 120 Teeth, 1" Bore, TCG
MSRP: CA$ 526.83
In stock
SKU
20-120-NF-THIN-4
CA$ 526.83
Technical Specifications
| Tool ID | 20-120-NF-THIN-4 |
|---|---|
| Brand | Dimar |
| Trade | Industrial |
| Diameter | 20" |
| Teeth | 120 |
| Kerf (B) | 4.2mm |
| Grind | TCG-N/F- Triple Chip Grind- Non Ferrous Metal |
| Hook Angle | - 6° |
| Technology | Carbide Tipped |
| Material | Non-Ferrous Material |
| Machine | Miter Saw, Radial Arm Saw, Stationary Table Saw |
Description
Dimar's Non-Ferrous Saw Blades are ideal metal cutting. Our blades have custom designed gullets to minimize chip build-up. The negative hook angle, triple-chip grind, and thick saw plate combine to produce a superior finish.
- This blade is furnished with a negative 6° hook angle for slow feed resulting in quality finishing cuts.

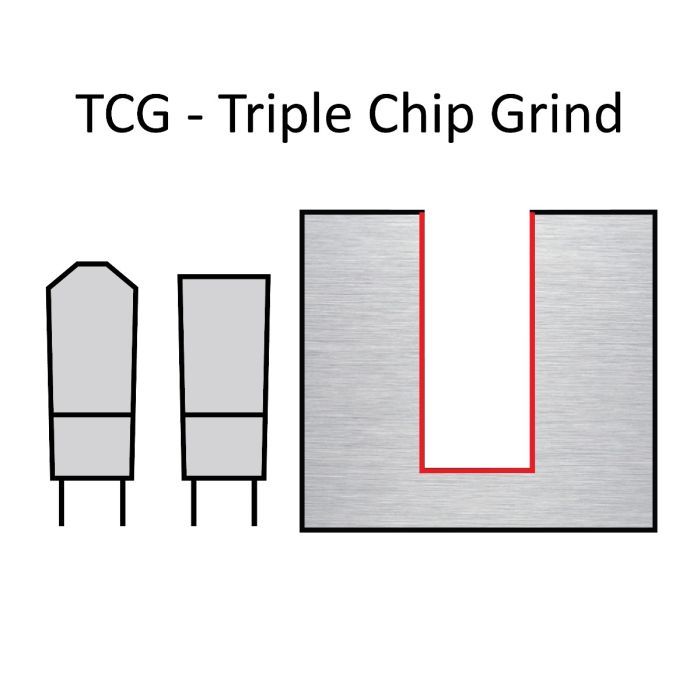

- The Triple Chip Grind design consists of one tooth that has the corners chamfered, and the next tooth is a little lower and flat. They alternate in this manner around the circumference of the blade and this geometry serves to prevent chipping on the top surface finish
- Cuts most non-ferrous materials such as aluminum sheets, tubing extrusions, copper, brass, lead, and magnesium.
* Note: Please ensure the use of lubricant and clamping device when cutting.
