3/4" Dia, Carbide Inserts, Flush Trim Bit, 2 Flutes, 1/4" Shank, 2 3/4" Length
| Tool ID | 1RL4-19 |
|---|---|
| Brand | Dimar |
| Trade | Industrial |
| Diameter (D) | 3/4" |
| Shank (d) | 1/4" |
| Cutting Length (B) | 30mm |
| Overall Length (L) | 2 3/4" |
| Number of Cutters | 2 |
| Technology | Carbide Inserts |
| Machine | Hand Router, Table Router , CNC Machine |
| Material | Soft Wood, Hard Wood |

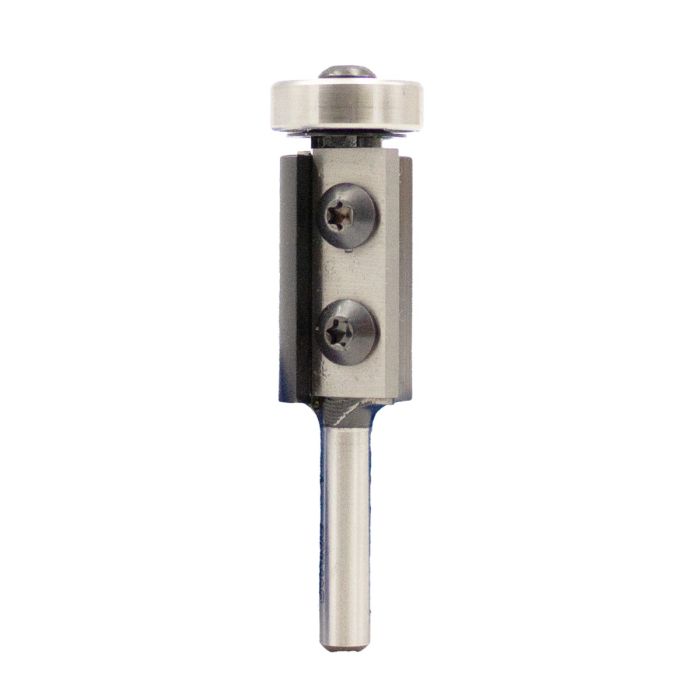

Dimar's Carbide Inserts Flush trim bit is recommended for pattern work, routing laminated tops, and general flush-trim routing. These bits have a ball-bearing pilot that permits you to trim overhanging surfaces perfectly flush with the substrate.
-
Two flute bits are ideal for faster cutting and three flute bits are perfect for superior surface finish.
-
Cuts most hardwoods, softwoods.
-
Use on CNC, hand-held, and table router machines.
-
Perfect for templates placed above or below the workpiece, or to trim laminates or veneer perfectly flush with countertops, shelving and other projects.
-
Radial relief technology-enabled: Ensures minimal loss of carbide diameter when sharpening, increase tool life, and saves almost 8x cost of regular sharpening.
-
Flat Screw technology-enabled: Our latest invention helps you to work in tight spaces that would not be possible with the use of Head type screws. To learn more about our latest advancements click here.
