150R4-27
Industrial
15/64" Dia, Carbide Tipped, Classical Rail Bit, 2 Flutes, 1/4" Shank, 2" Length
MSRP: CA$ 163.81
In stock
SKU
150R4-27
CA$ 163.81

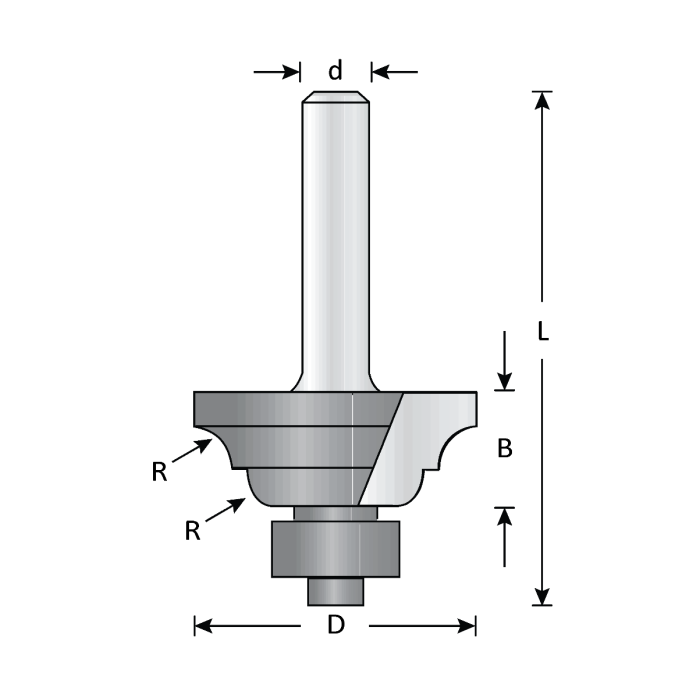

Technical Specifications
| Tool ID | 150R4-27 |
|---|---|
| Brand | Dimar |
| Trade | Industrial |
| Diameter (D) | 15/64" |
| Number of Cutters | 2 |
| Shank (d) | 1/4" |
| Cutting Length (B) | 3/8" |
| Radius (R) | 9/64" |
| Overall Length (L) | 2" |
| Technology | Carbide Tipped |
| Machine | Table Router |
| Material | Soft Wood, Hard Wood |
Description
This ultimate rail and stile bit is recommended for creating doors. The stub spindle and cope cutter configuration are used to make unique door-making router bits. A cap screw secures the counterbored cope cutter to the spindle. The ornate ogee "sticking" along the edges of the stiles and rails is shaped with a matching profile bit. The tenon travels over the top of the bit unimpeded since the cope is cut on the ends of the rails.
- Carbide-tipped for maximum performance
- Cuts most hardwood and softwood
- Can be used on most table-mounted portable routers
