14-108-NF
Industrial
14" Dia, Carbide Tipped, Non Ferrous Saw Blade, .126" (3.2mm) Kerf, 108 Teeth, TCG
MSRP: CA$ 312.28
In stock
SKU
14-108-NF
CA$ 312.28
Technical Specifications
| Tool ID | 14-108-NF |
|---|---|
| Brand | Dimar |
| Trade | Industrial |
| Diameter | 14" |
| Teeth | 108 |
| Kerf (B) | .126” (3.2mm) |
| Bore | 1" |

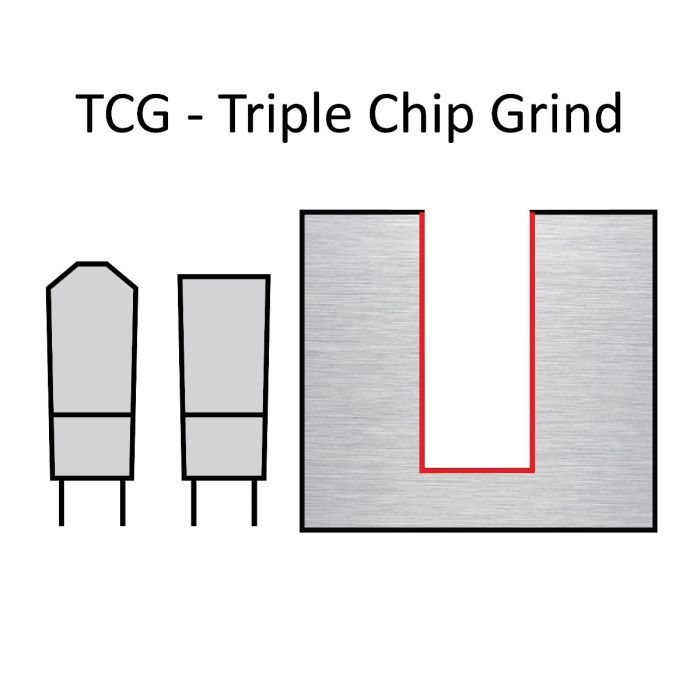

| Grind | TCG- Triple Chip Grind |
| Hook Angle | - 6° |
| Technology | Carbide Tipped |
| Material | Non-Ferrous Material |
| Machine | Miter Saw, Sliding Mitre Saw , Radial Arm Saw, Stationary Table Saw, Vertical Panel Saw |
| Max. RPM | 3,800 |
Description
For cutting aluminum sheets, tubing extrusions, and other nonferrous metals such as copper, brass, lead, and magnesium. For smooth cutting, use lots of lubricants and a clamping device.
Note: The material must be clamped firmly to the table on both sides during the cutting operation. The use of coolant is very important.
- Carbide tipped for maximum performance
- This blade is furnished with a Negative 6° hook angle for a reasonable finish
- This hook angle prevents self-feeding of materials and gives the operator maximum control over the feed of the cut
